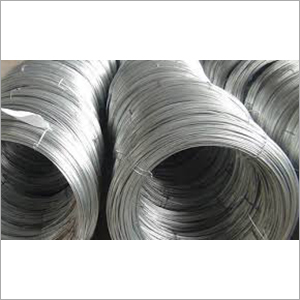

Hastelloy C 276 Wire

Product Description

Chemistry Typical :

• Nickel: Balance
• Chromium: 14.50 - 16.50
• Molybdenum: 15.00 - 17.00
• Iron: 4.00 - 7.00
• Tungsten: 3.00 - 4.50
• Cobalt: 2.50 max
• Manganese: 1.00 max
• Carbon 0.010 max
• Vanadium: 0.35 max
• Phosphorus: 0.040 max
• Silicon: 0.08 max
• Sulfur: 0.030 max

Physical Properties :

• Density: 0.321 lbs/in³,8.89 g/cm³
• Mean Coefficient of Thermal Expansion: in/in/^oF (mm/m/^oC): 70-212^oF (20- 100^oC): 6.2 x 10-6 (11.2)
• Thermal Conductivity: BTU-in/h-ft-^oF (W/m-°K): 70°F (21^oC): 71(10.2)
• Modulus of Elasticity: KSI (Mpa) : 29.8 x 10³(205 x 10³) in tension
• Melting Point: 2500^oF (1371^oC)

Applications :

• Marine hardware
• Chemical processing components
• Agrichemical and petrochemical production.
